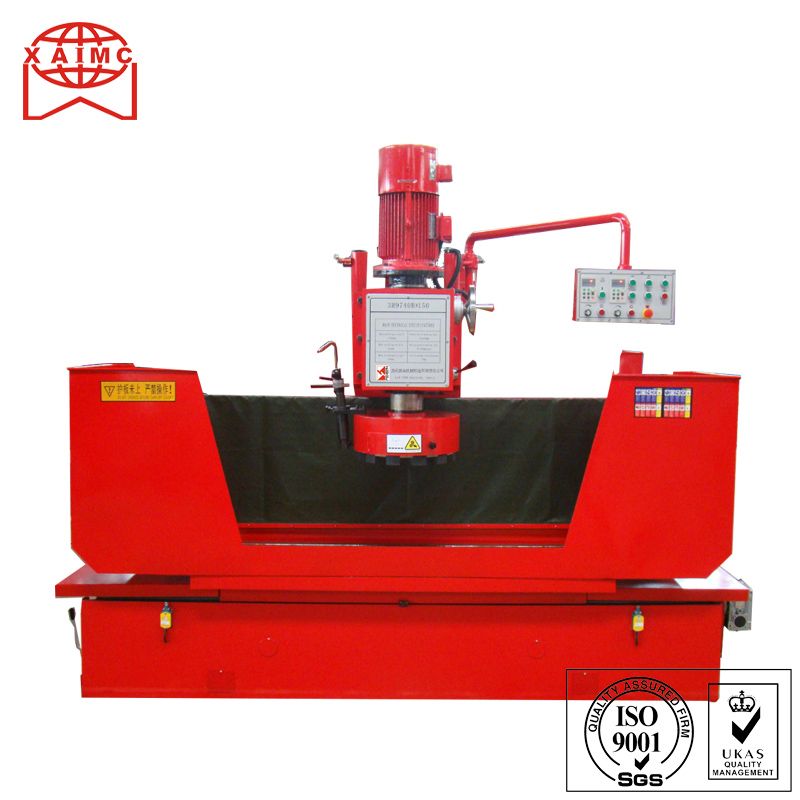

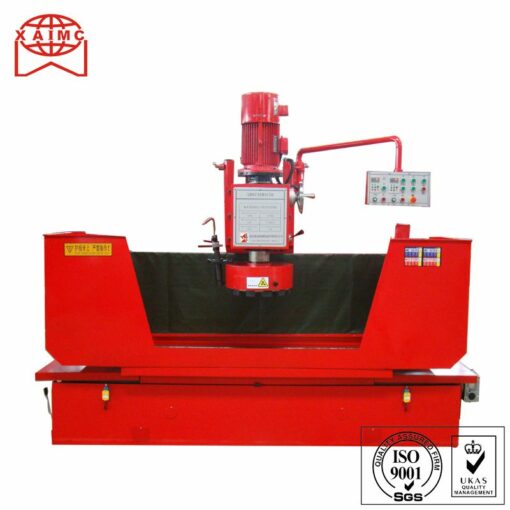

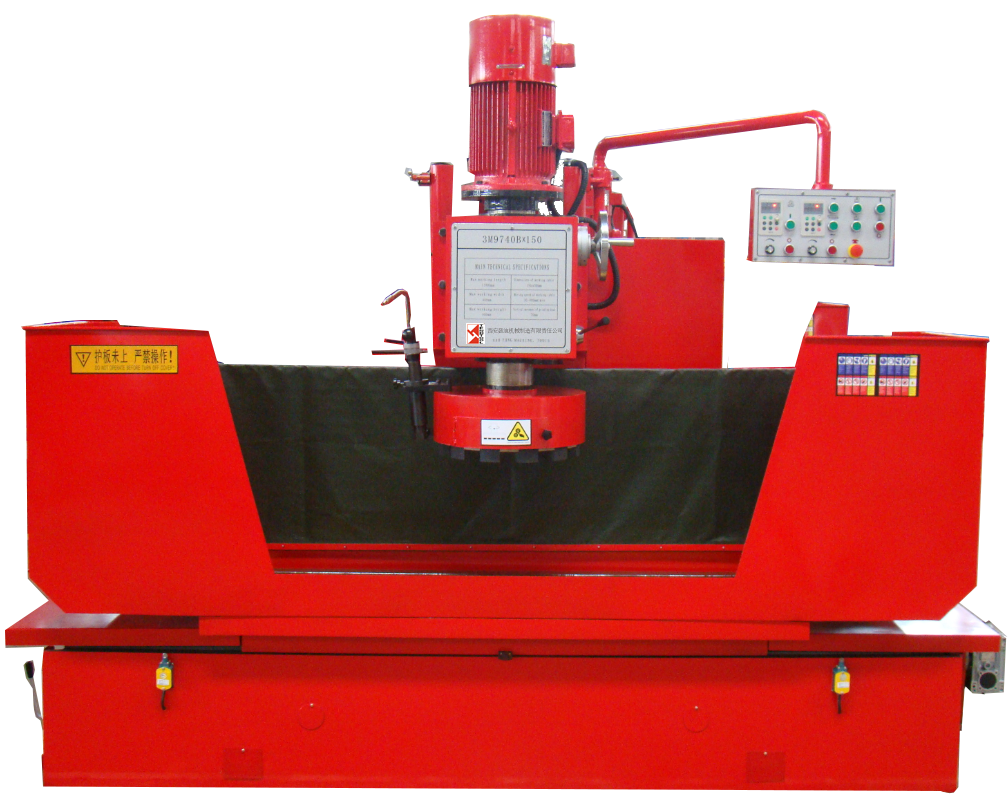

Cylinder Block Grinding & Milling Machine 3M9740B*130/150

The machine is mainly used for grinding and milling the connecting surface between cylinder body and cylinder cover of every engine (of automobiles, tractors, tanks and ships). Because of the engine be used for long, the connecting surface of cylinder body and cylinder cover would transmute and the engine will working off normal. Working accuracy can be achieved that the connecting surface of cylinder body and cylinder cover be ground or milled. The machine can also grinding the surface of other parts if the electromagnetic chuck be equipped.

Category: Engine Rebuilding Machine Tag: Cylinder Block Grinding & Milling Machine

Description

cylinder block&head milling&grinding machine/cylinder head surfacer 3M9740Bx150

Structure characters:

1. The spindle adopts high precision bearing,the motor is fixed on the back of the machine,which guarantee the spindle prcision
with high speed.
2. It adopts the plastic guide-way,running atable and flexible.

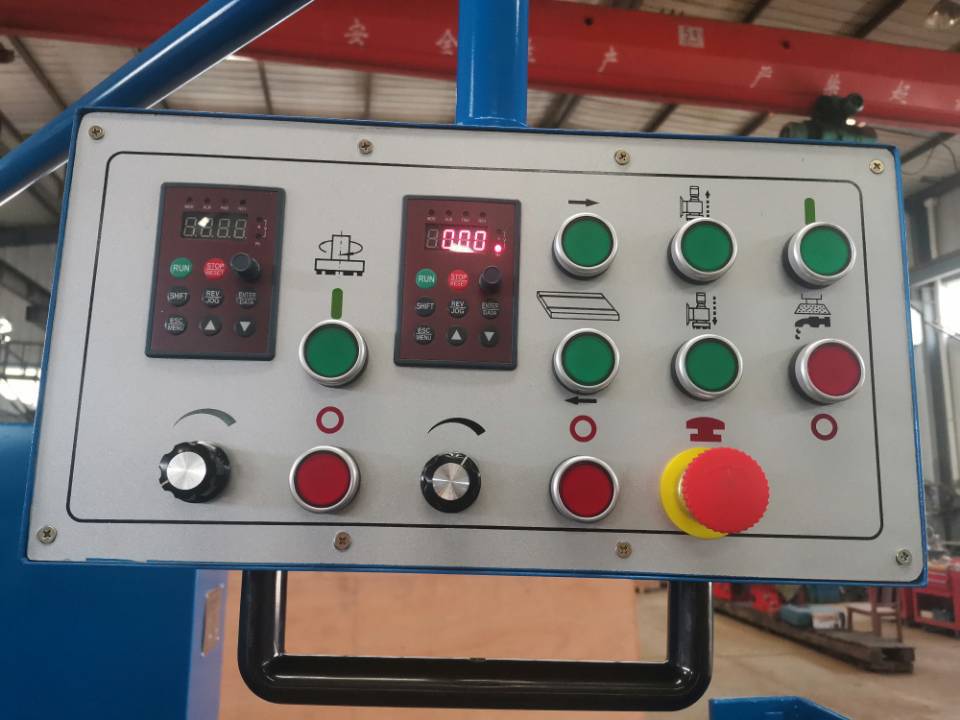

3. The feeding of work table adopts stepless adjusting,suits for processing all kinds of materials of work piece.

Model	3M9740B×130	3M9740B×150
Workbench dimension	1300×500mm	1500×500mm
Max.working length	1300mm	1500mm
Max.working width	350mm	350mm
Max.working height	800mm	800mm
Emery wheel disk moving travel	60mm	60mm
Workbench moving speed	40-900r/min	40-900r/min

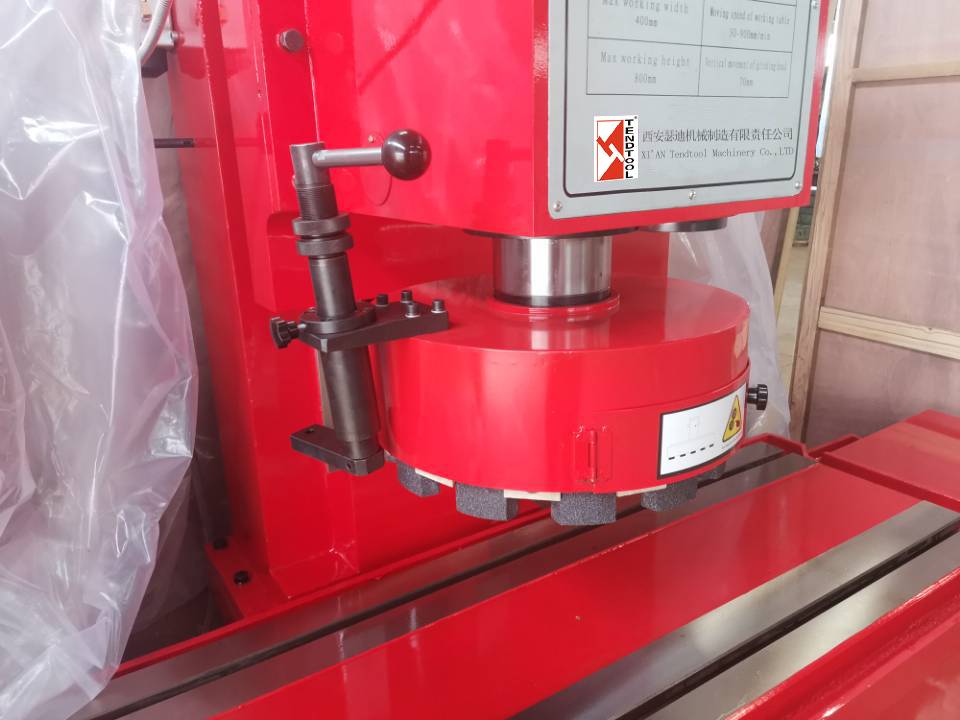

Emery wheel disk diameter	360mm	360mm

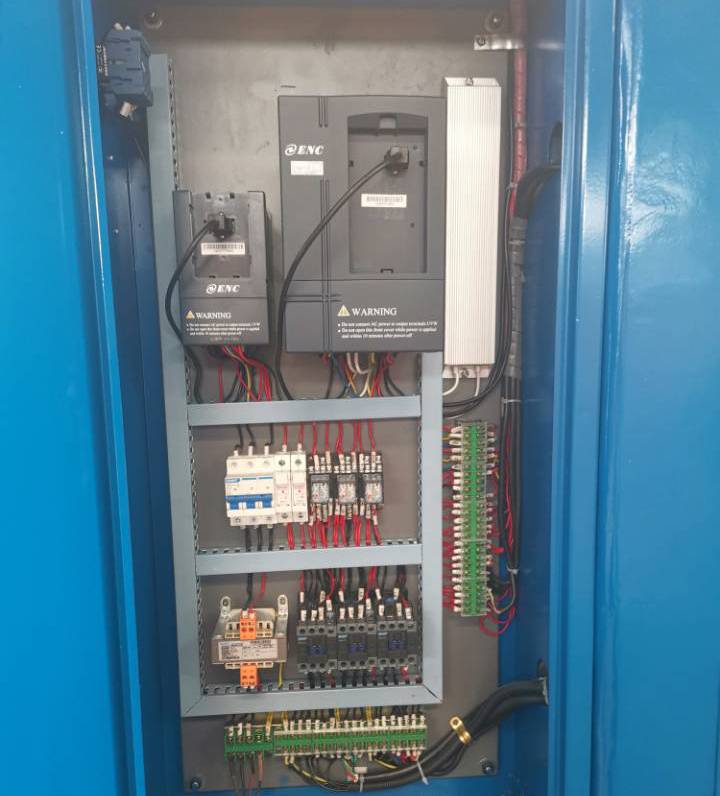

The speed of revolution of main motor	1400/700(Frequency control of motor speed)r/min	1400/700(Frequency control of motor speed)r/min
Power of the main motor	1.5/2.4kw	1.5/2.4kw
Feed motor power	0.75kw	0.75kw

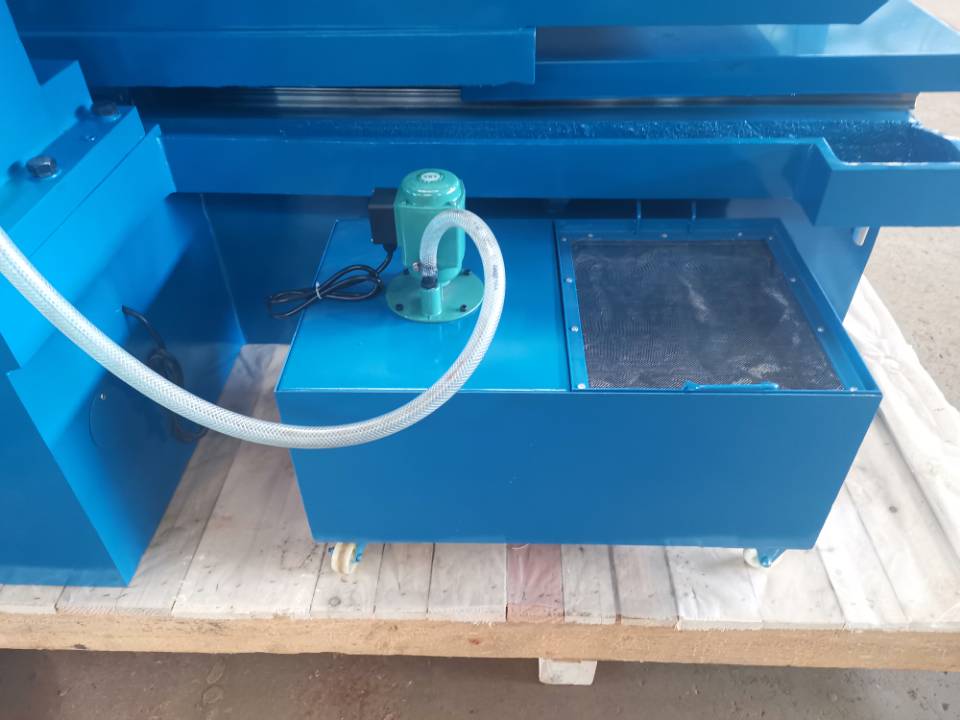

Cooling motor power	40w	40w
N.W	2.2T	2.2T
OUTLINE DIMENSION	3100×1130×2230MM	3100×1130×2230MM
