XZ6350ZB vertical and horizontal auto drill machine
The BIGEST difference of XZ6350ZB and ZX6350ZB:
|
Model
|
XZ6350ZB
|
ZX6350ZB
|
|
Table size
|
1270x280mm
|
1370x320mm
|
|
Table travel
|
750x300x380mm
|
800x320x380mm
|
|
Max weight of workpiece
|
350kg
|
360kg
|
Vertical Milling Head
XZ6350ZB Milling head can be rotaried 45° from left side to right side, make the machine have higher efficetive.
Worktable
XZ6350ZB Hardening treatment table is 1270*280mm, the machine have higher rigidity.
Three-axis Automatic Feed
XZ6350ZB with X, Y two axis mechanical automatic feeding, Z axis motor lift.
Lifiting Table
XZ6350ZB Lifiting table for a square guide, with good rigidity.

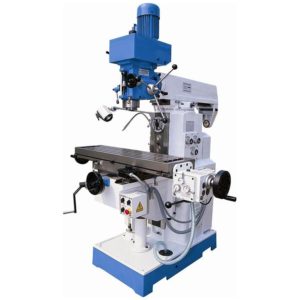

Manual universal vertical milling machine drill machine for aluminum steel profile XZ6350ZB
Specifications:
| Specifications | Units | XZ6350ZB |
| Table size | mm | 1120×260 |
| Table travel | mm | 600×270 |
| Spindle taper | ISO40 | |
| Max. drilling dia. | mm | 50 |
| Automatic drilling dia. | mm | 14 |
| Max. vertical milling dia. | mm | 25 |
| Distance between spindle nose and table surface | mm | 100-400 |
| Spindle speed range | rpm | 90-2000(V)/38-1310(H) |
| Spindle travel | mm | 120 |
| Overall dimension | mm | 1520×1290×2150 |
| Spindle motor power | KW | 2.2 |
| Machine weight | kg | 1400 |
