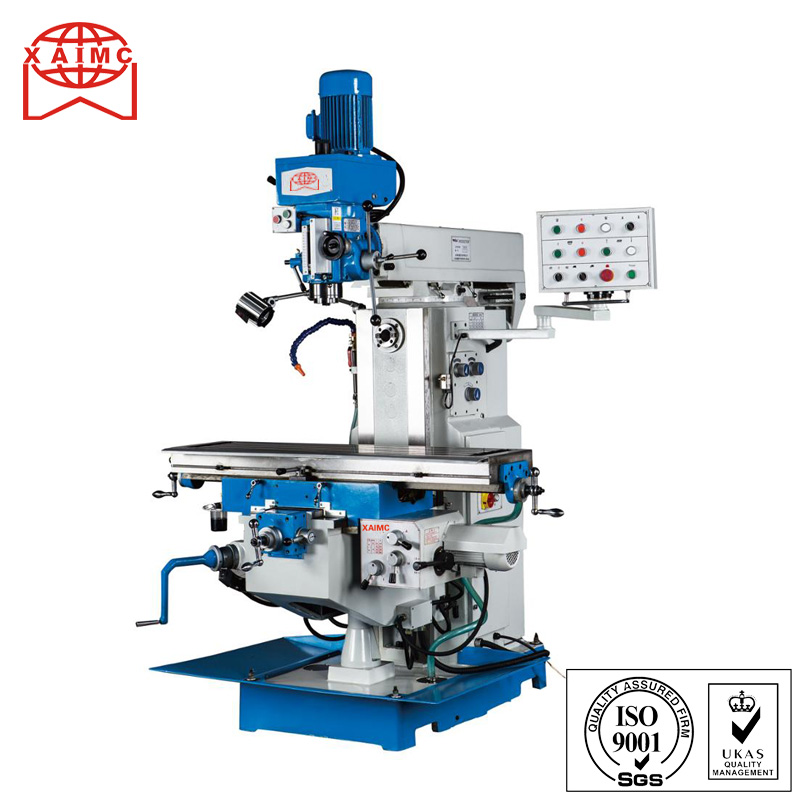

X6332Z universal vertical horizontal gear head drilling and milling machine

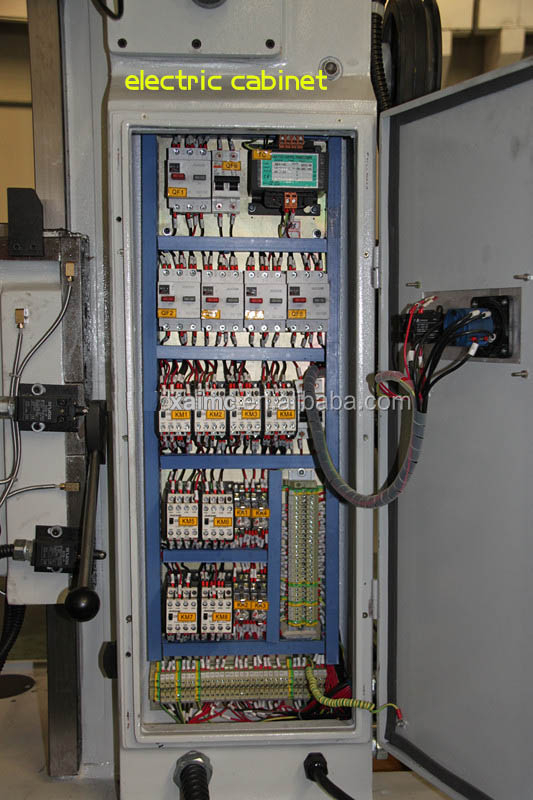

Structural features

This series of machine tools is compact in structure, small in size and high in flexibility. The milling head can be rotated 90 degrees left and right, and the rocker arm can be extended and retracted.
The body is made of high-grade cast iron.

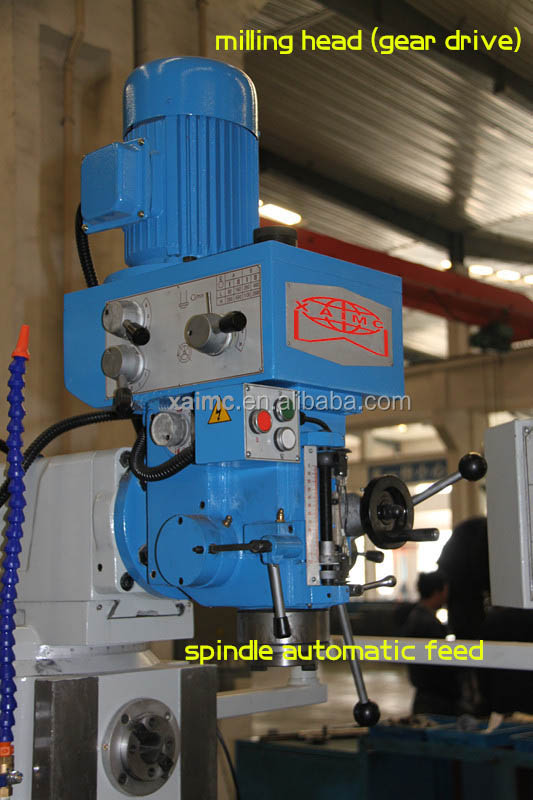

The main shaft is made of chrome-molybdenum alloy, equipped with precision-grade angular contact bearings. After quenching and tempering and fine grinding, the cutting force is strong and the precision is high.Each nut is made of high-grade phosphor bronze, which has good wear resistance and long service life.

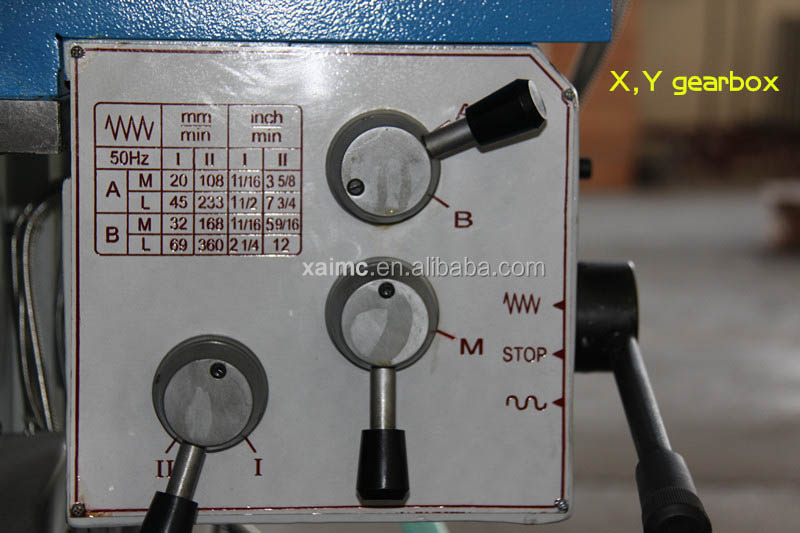

The X and Y of the worktable are automatic feed of the gear transmission, and the Z direction is electric lift.

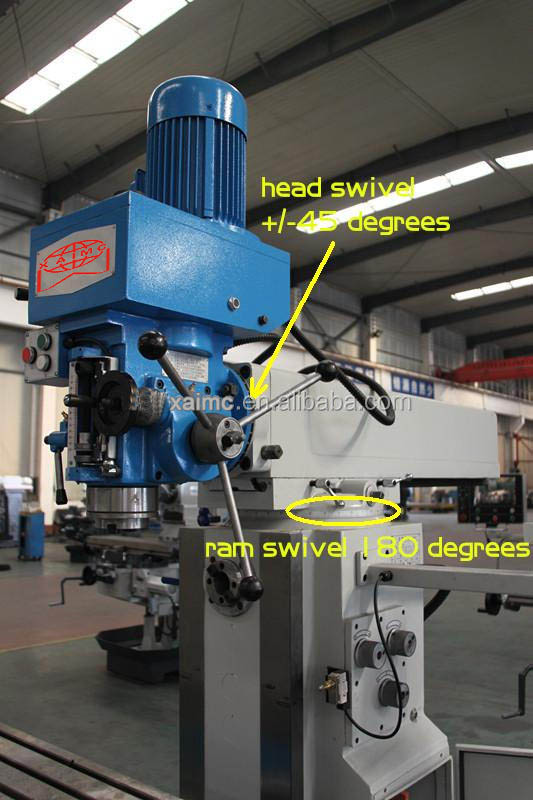

The milling head can rotate by ±45°.

Category: Milling

Description

X6332Z Multifunctional automatic feed Horizontal Verticall universal drilling and milling machine
Z series milling machine is an economical drilling and milling machine developed by our factory combining the advantages of drilling machine, milling machine and other machine tools. The structure is reasonable and the operation is convenient. It can carry out the milling processing of planes, end faces and grooves of small and medium-sized mechanical parts, and can also punch, ream, ream, tap, and boring parts. With the bowl-shaped grinding wheel, the grinding surface of the processing surface of the parts and the guide rails can be processed to achieve multi-purpose, energy-saving and high-efficiency. It is an ideal processing equipment for machining, mold manufacturing and repairing. The Z-type head is equipped with manual and automatic functions for automatic drilling, boring, threading, milling, slotting and milling.

Technical Data of Drilling Milling Machine

SPECIFICATION	UNIT	X6332Z
TABLE SIZE	MM	1320×320
SPINDLE SPEED RANGE	R/MIN	90-2000(V),38-1310(H)
SPINDLE TAPER		ISO40
TABLE TRAVEL	MM	800(750) ×300
MAX. DRILLING DIA.	MM	50
MAX. AUTOMATICAL DRILLING DIA.	MM	14(CAST IRON)
DISTANCE FROM SPINDLE NOSE TO TABLE SURFACE	MM	180-580
DISTANCE BETWEEN SPINDLE AXIS AND COLUMN SURFACE	MM	200-780
SPINDLE TRAVEL	MM	120
MAIN MOTOR	KW	2.2(V/H)
OVERALL DIMENSION(L×W×H)	MM	1710×1720×2330
NET WEIGHT	KG	2000

X6332Z universal vertical horizontal gear head drilling and milling machine
