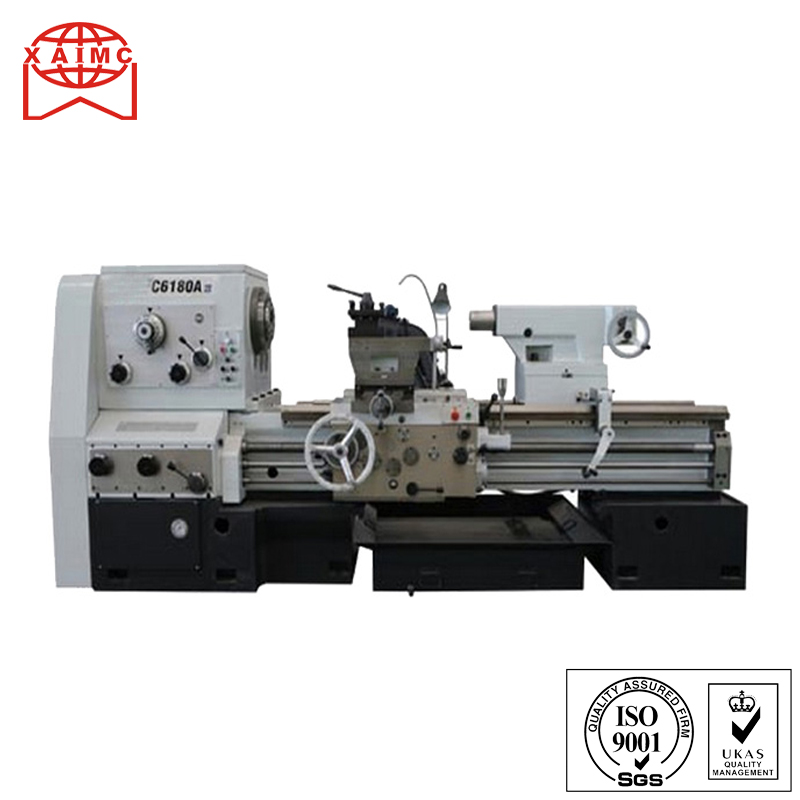

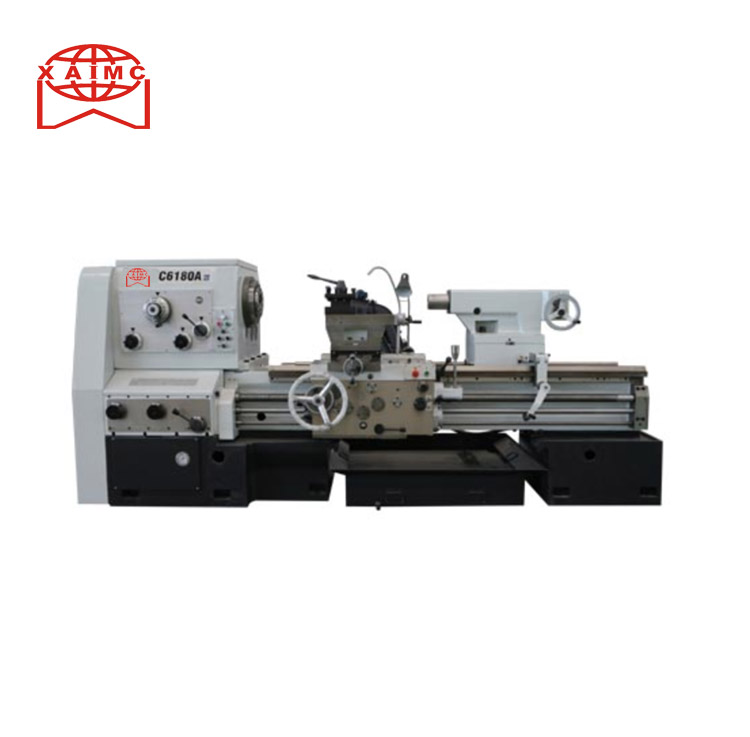

Horizontal Manual Lathe Machine C6180A

Introduction

The series of this lathe is suitable all kinds of turningwork, such as internal and external turning, taper turning and other revolutionfacing, head facing and various of common threading turning—such as metric,inch, module, pitch and drilling, reaming, tapping and broaching and etc.

C6163B、C6263B、C6180A、C6280A adopt bed and foot post structure, the width of thebed is 560mm, and autofeeding function for upper toolpost is optional.

C6180 adopts integral bed structure, and the width of the bedis 600mm and with autofeeding function for upper toolpost.

Category: Turning

Description

Specifications

items		unit	C6163B	C6180A	C6180
capacity	Max swing over bed	mm(in)	φ660(φ25.984)	φ830(φ32.677)	φ830(φ32.677)
	Max swing dia.over cross slide	mm(in)	φ400(φ15.748)	φ540(φ21.26)	φ500(φ19.685)
	Max distance between two tops	mm(in)	1500/2000/3000/4000 (59.055/78.74/118.11/157.48)		1500 (59.055)
	Max turning length	mm(in)	1400/1900/2900/3900 (55.118/74.803/114.173/153.543)		1400(55.118)
	Width of bed way	mm(in)	560(22.047)		600(23.622)
spindle	Spindle thru-hole dia.	mm(in)	φ105(φ4.134)
	Taper of spindle bore		1:20 (metric taper)
	Type of spindle nose		A1-11
	spindle speed	r/min(rpm)	14- class 12.5-1120
Feeds and threads	Max travel of upper toolpost	mm(in)	200(7.874)
	Max travel of lower toolpost	mm(in)	480(18.898)	515(20.276)	500(19.685)
	Tool section	mm	32×32
	X-axis feeds	mm/r（in/r）	64kinds 0.031-7.0(0.00122-0.276)
	Y-axis feeds	mm/r（in/r）	64kinds 0.062-14.0(0.00244-0.551)
	Metric threads	mm(in)	38kinds 0.5-56(0.00197-2.205)
	Inch threads	t.p.i	43kinds 56-0.5
	Module threads	πmm	21kinds 0.25-7
	Diametric pitch threads	DP	27kinds 56-4
tailstock	Diameter of quill	mm(in)	φ100(φ3.937)
	Max travel of quill	mm(in)	250(9.843)
	Taper of quill(Morse)		Morse No.5

items		unit	C6263B	C6280A
capacity	Max swing over bed	mm(in)	φ660(φ25.984)	φ830(φ32.677)
	Max swing dia.over cross slide	mm(in)	φ400(φ15.748)	φ540(φ21.26)
	Max distance between two tops	mm(in)	1500 (59.055)
	Max turning length	mm(in)	1400 (55.118)
	Max swing dia. over	mm(in)	φ800(φ31.496)	φ970(φ38.189)
	Effective width in gap	mm(in)	300 (11.811)
	Width of bed way	mm(in)	560(22.047)
spindle	Spindle thru-hole dia.	mm(in)	φ105(φ4.134)
	Taper of spindle bore		1:20 (metric taper)
	Type of spindle nose		A1-11
	spindle speed	r/min(rpm)	14- class 12.5-1120
Feeds and threads	Max travel of upper toolpost	mm(in)	200(7.874)
	Max travel of lower toolpost	mm(in)	480(18.898)	515(20.276)
	Tool section	mm	32×32
	X-axis feeds	mm/r（in/r）	64kinds 0.031-7.0(0.00122-0.276)
	Y-axis feeds	mm/r（in/r）	64kinds 0.062-14.0(0.00244-0.551)
	Metric threads	mm(in)	38kinds 0.5-56(0.00197-2.205)
	Inch threads	t.p.i	43kinds 56-0.5
	Module threads	πmm	21kinds 0.25-7
	Diametric pitch threads	DP	27kinds 56-4
tailstock	Diameter of quill	mm(in)	φ100(φ3.937)
	Max travel of quill	mm(in)	250(9.843)
	Taper of quill(Morse)		Morse No.5
