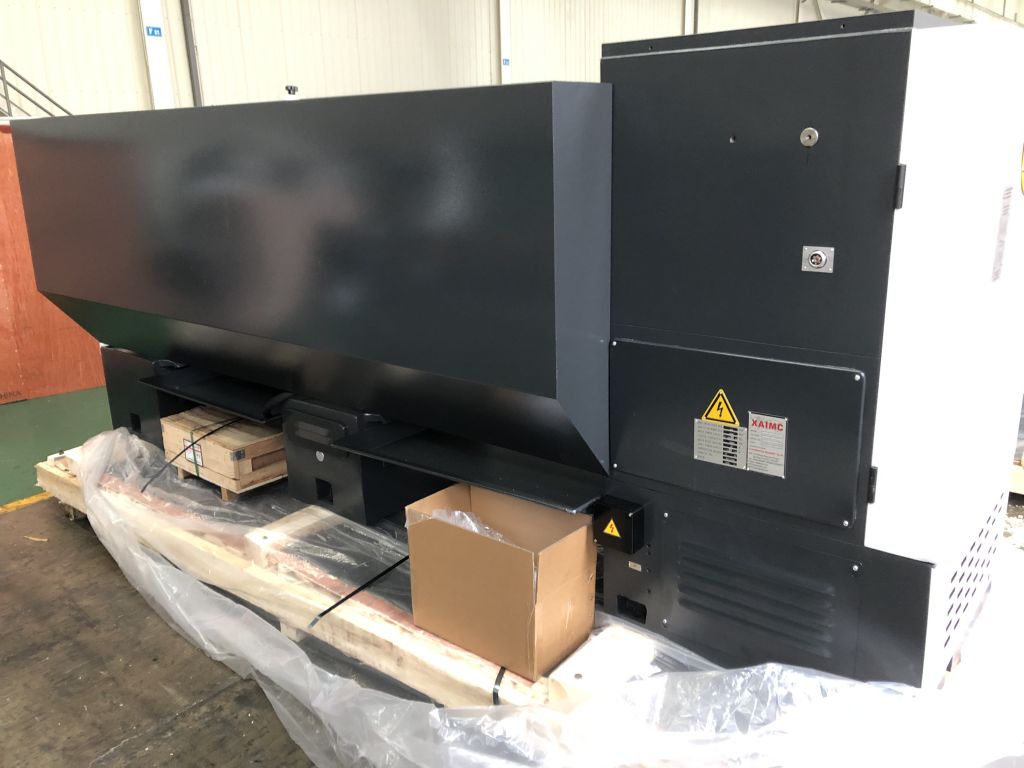

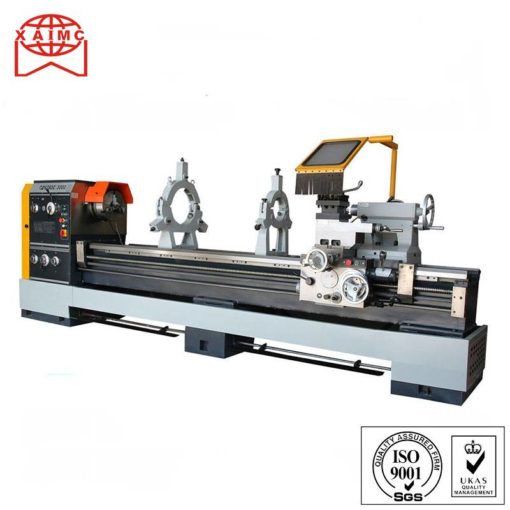

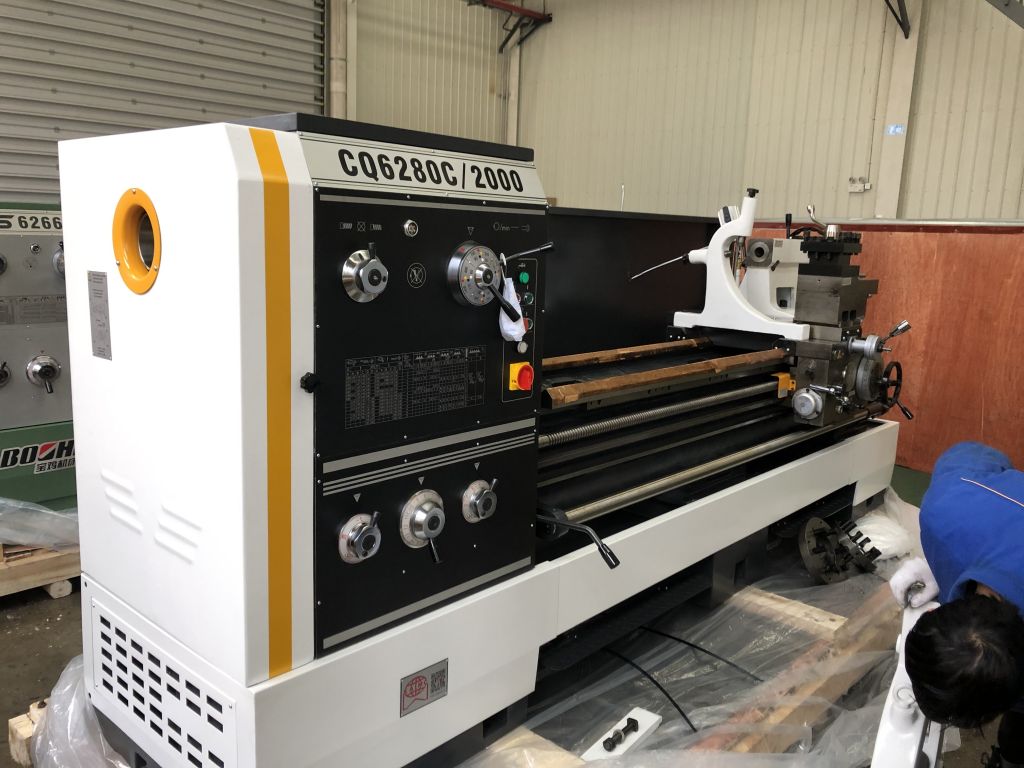

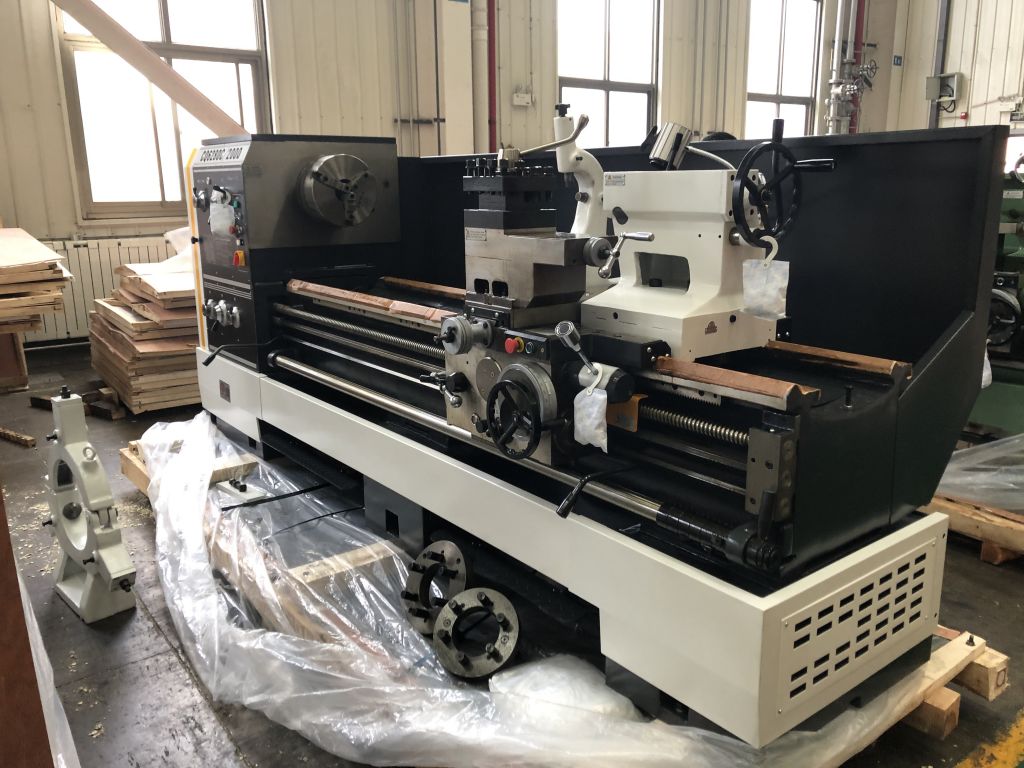

CQ6280 Universal heavy duty horizontal lathe machine
1. Threading Inch, Metric, Module and D.P; Perform drilling, boring and groove broaching; hand brake and foot brake for users to choose;
2. The manual turning Gap-bed lathe machine can machining all kinds of flat stocks and those in irregular shapes;
3. Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters; Both Inch and Metric system are used on these lathes,
4. These series lathes operate on power supply of different voltages (220V; 380V; 420V) and different frequencies (50Hz/60Hz).
Product Description
|
|
ITEM
|
CQ6280B
|
CQ6280C
|
|
Capacity
|
Swing over bed
|
φ800mm
|
φ800mm
|
|
Swing in gap
|
φ1000mm
|
φ1000mm
|
|
|
Swing over slide
|
φ560mm
|
φ560mm
|
|
|
Max.Workpicec length
|
2000/3000mm
|
2000/3000mm
|
|
|
Spindle
|
Spindle bore diameter
|
φ82mm
|
φ105mm
|
|
Type of spindle nose
|
ISO702/n NO.8 com-locktype
|
||
|
Spindle speed
|
8-1400
|
30-1400
|
|
|
Spindle Motor Power
|
7.5kw
|
||
|
Turret
|
Diameter of quill
|
φ90mm
|
|
|
Max.traavel of quill
|
150mm
|
||
|
Taper of quill
|
M.T.5
|
||
|
Others
|
Size(L*W*H)
|
3360*1340*1490mm
|
4365*1340*1490mm
|
|
Weight
|
3000
|
3200
|
|
