Introduction

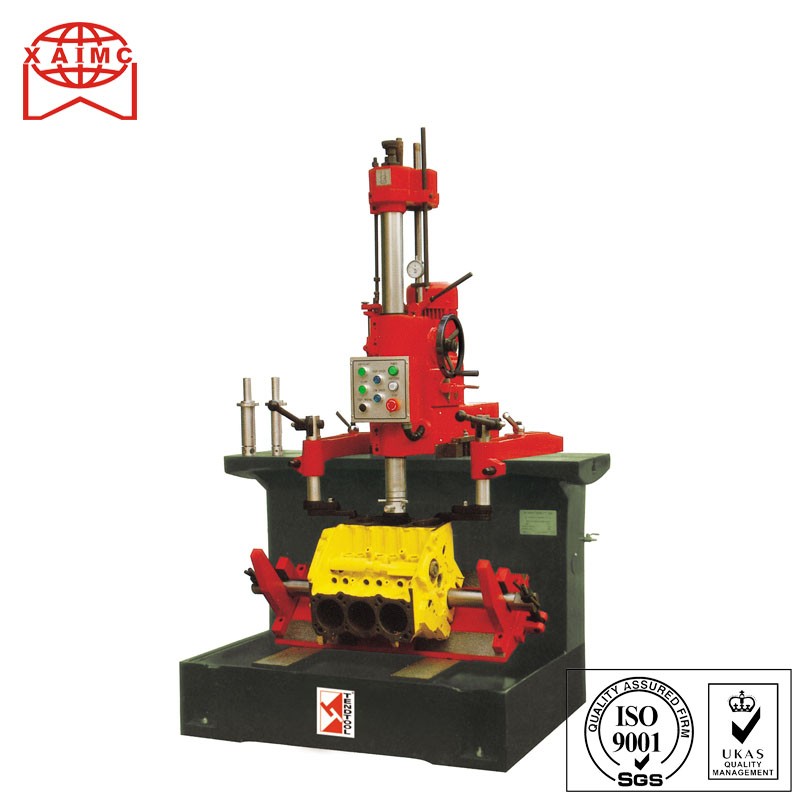

This vertical air-floating fine boring machine is mainly used for reboring single line cylinder and V-engine cylinders of automobiles motor cycles and tractors and also for other machine element holes.
Features
1,Easy and flexible operation 2,Reliable performance,widely use,processing accuracy,high productivity. 3,Air-floating location quick and precise ,automatic pressure. 4,Spindle speed is suitability 5,the tool setting and measuring device. 6,There is a vertical measuring device. 7,Good rigidity,amoumt of cuting.
|
Table of Standard and Optional Acces sories
|
||
|
Model
|
Standard Accessories
|
Optional Accessories
|
|
TB8016
|
1.2.4.5
|
3,6
|
Specifcation
|
Model
|
Unit
|
TB8016
|
|
|
Boring diameter
|
mm
|
Φ39-Φ160
|
|
|
Max. boring depth
|
mm
|
320
|
|
|
Boring head travel
|
Longitudinal
|
mm
|
1000
|
|
Transversal
|
mm
|
45
|
|
|
Spindle feed
|
mm/s
|
0.09
|
|
|
Spindle speed
|
r/min
|
125,185,250, 370 ( 4 steps)
|
|
|
Spindle rapid reset
|
mm/s
|
430 , 640
|
|
|
Pneumatic pressure
|
Mpa
|
0.6
|
|
|
Motor power
|
Kw
|
0.85 / 1.1
|
|
|
V-block fixture patented system
|
degree
|
30°,45 °
|
|
|
Overall dimensions
|
mm
|
1250×1050×1970
|
|
|
Packing dimensions
|
mm
|
1500×1140×2070
|
|
|
N.W./G.W.
|
kg
|
1300/1500
|
|
