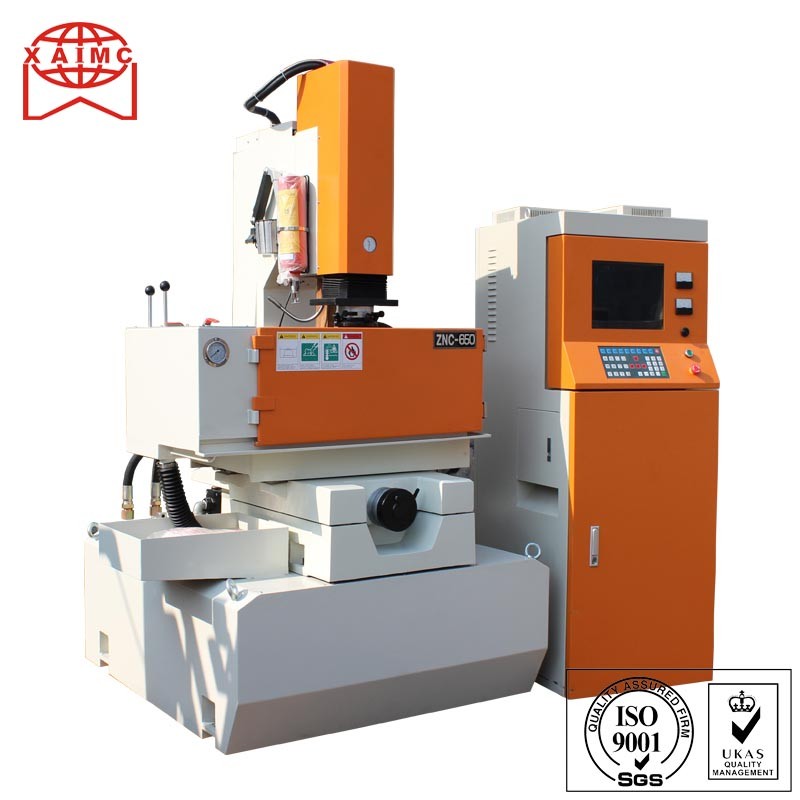

ZNC350 spark erosion cnc electric discharge edm die sinking machine
Product Description
| Model number | ZNC 350 | ZNC 450 | ZNC 550 | ZNC 650 |
| Workbench size(mm) | 600*300 | 700*400 | 800*480 | 1000*600 |
| Working slot size(mm) | 820*500*300 | 1120*620*420 | 1290*770*500 | 1700*1000*620 |
| X-Y-Z travel(mm) | 300*200*200 | 400*300*200 | 500*400*250 | 600*500*250 |
| Spindle head stroke(mm) | 200 | 200 | 300 | 300 |
| Electrode lifting weight(kg) | 60 | 70 | 200 | 200 |
| Max. workpiece weight(kg) | 500 | 750 | 1500 | 2250 |
| Electrode plate to table distance(mm) | 150-550 | 200-600 | 160-710 | 260-860 |
| Working fluid capacity(L) | 280 | 300 | 470 | 940 |
| Dimension(mm) | 1320*1220*2240 | 1400*1200*2050 | 1530*1850*2250 | 2150*1800*2400 |
| Electrical cabinet | P30A/P30B | P60A/P60B | P90A/P90B |
| Max. working current(A) | 30 | 60 | 90 |
| Max. power consumption(KVA) | 2 | 4 | 6 |
| Processing speed(mm³/min) | 200 | 400 | 600 |
| Min. electrode consumption | 0.3% | 0.3% | 0.3% |
| Optimal surface roughness(μm) | Ra≤0.3 | Ra≤0.3 | Ra≤0.3 |
| Accuracy(mm) | ≤0.01 | ≤0.01 | ≤0.01 |
| Dimension(mm) | 760*620*1840 | 760*620*1840 | 760*620*1840 |
| Weight(kg) | 190 | 210 | 230 |
