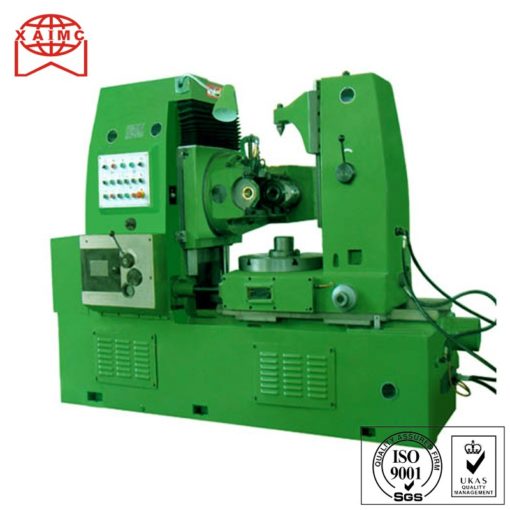

Y3150K Minitype gear hobber machine price
1.The machine is suitable for large and single production of cylindrical spur and helical gears ,worm gears and sprocket;
2.The machine is characterized by good rigidity,high working accuracy,easy in operation and maintain;
3.The machine can be operated not only with forward and backward cutting,but also with axial or radial feed;
4.Easy in operation and maintain;
5.According to the special needs of users,can be raised or extended tool to expand the scope of the processing machinery accuraccy.
| Model | YB3120K | Y3150K | Y3180K | Y31125K | Y31160K | Y31160A |
| Max workpiece dia. | 200mm | 500mm | 620/800mm | 1000/1250mm | 1300/1600mm | 1600mm |
| Max module | 6mm | 8mm | 8/10mm | 16/18mm | 16/20mm | 24mm |
| Max width of teeth | 170mm | 250mm | 300mm | 450mm | 450mm | 1100mm |
| Max hob diameter/length | 140/140mm | 160/160mm | 180/175mm | 245/220mm | 280/3320mm | 325/360mm |
| Diameter of worktable | 320mm | 510mm | 625mm | 950mm | 1100mm | 1450mm |
| Main motor | 7.5kw | 5.5kw | 5.5kw | 15kw | 15kw | 22kw |
| Worktable bore diameter | 65mm | 8mm | 80mm | 200mm | 260mm | 260mm |
| Net weight | 3500kgs | 4500kgs | 5700kgs | 13000kgs | 16000kgs | 30000kgs |
It can be according to the special requirements of the user design,manufacture of helical gear, rack accessories processing accessories,gear processing accessories, burr removing device and automatic feeding device and so on. The machine tool is especially suitable for mass production of automobile, motorcycle, engineering machinery, production of professional gear and machine tool industry in various production batches to use.
