Product Overview

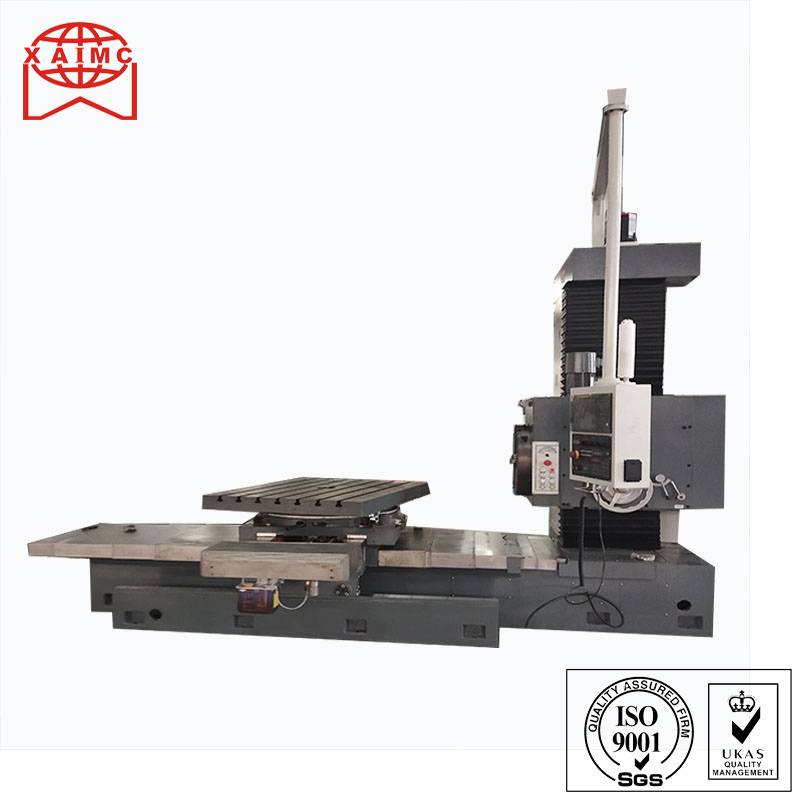

CNC Horizontal Milling Boring Machine
The CNC horizontal milling and boring machine is suitable for processing large and medium-sized parts and box-shaped parts for rough and fine boring, milling and other processes. The worktable is equipped with a 4×90◦ optical positioning device, which can meet the requirements of turning-around processing of large parts. CNC horizontal milling and boring machine is suitable for box-shaped part hole and plane machining with many processes, turning of outer cylindrical surface, cutting of annular groove in hole, tapping metric and inch threads, etc. It also has the rectangular coordinate system and pole of CNC machine tools. Coordinate system and process function of contour processing. Because the CNC horizontal milling and boring machine has high rigidity and closed-loop detection system, which can meet the requirements of rough and fine machining, the CNC horizontal milling and boring machine is a large-scale CNC high-efficiency, precise and general-purpose machining equipment.
FEATURES AT A GLANCE
1. Resin sand molding high-quality castings, and two stress relief treatments.
2. X, Y, Z all use servo motors to drive the ball screws to rotate via synchronous pulleys, with simple and reliable structure. W axis is directly connected.
3. The boring shaft is equipped with a cutter cylinder, which makes loading and unloading tools convenient and fast. 4. Optional 4*90 ° positioning rotary table
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
Model
|
TPX6111
|
TPX6111A
|
TPX6111B
|
TPX6113A
|
|
Spindle diameter mm
|
110
|
110
|
130
|
130
|
|
Spindle taper
|
ISO 50 or BT 50
|
ISO 50 or BT 50
|
ISO 50 or BT 50
|
ISO 50 or BT 50
|
|
Spindle speed r/m
|
20-1000
|
20-1000
|
20-950
|
20-950
|
|
Maximum torque of spindle Nm
|
447
|
447
|
680
|
680
|
|
Maximum resistance of boring shaft N
|
18000
|
18000
|
20000
|
20000
|
|
Main motor power Kw
|
15
|
15
|
18
|
22
|
|
X axis mm
|
1400
|
1800
|
2000
|
2500
|
|
Y axis mm
|
900
|
1200
|
1700
|
1900
|
|
Z axis mm
|
700
|
700
|
900
|
1100
|
|
W axis mm
|
600
|
600
|
800
|
800
|
|
X Y Z speed mm/min
|
1-5500
|
1-5500
|
1-8000
|
1-8000
|
|
W speed mm/min
|
1-3000
|
1-3000
|
1-3000
|
1-3000
|
|
Worktable size mm
|
900*1200
|
900*1300
|
1400*1600
|
1600*2000
|
|
Accuracy mm
|
0.04/0.032/0.032
|
0.04/0.032/0.032
|
0.04/0.032/0.032
|
0.04/0.032/0.032
|
|
PLC
|
Fanuc CNC system
other system such as Siemens, Mitsubishi, GSK, and FAGOR can choose |
|||
PRODUCT CONFIGURATION
Spindle
Horizontal boring machine spindle box adopts the weight balance method. The main shaft and the swinging plate are controlled by AC
servo motors.Horizontal boring machine XYZ axis is controlled by the CNC system, which can realize three-axis linkage.
servo motors.Horizontal boring machine XYZ axis is controlled by the CNC system, which can realize three-axis linkage.
Handle part
Horizontal boring machine tools adopts the layout form of single column and side hanging box
the worktable adopts four-point
positioning and manual rotation structure (optional squirrel structure CNC turntable 360×1 indexing).
positioning and manual rotation structure (optional squirrel structure CNC turntable 360×1 indexing).
Worktable
High-strength cast iron HT200-300, the working surface hardness is HB170-240, after two manual treatments (artificial annealing
600 degrees -700 degrees or natural aging for 2-3 years) so the product has stable precision and good wear resistance.
600 degrees -700 degrees or natural aging for 2-3 years) so the product has stable precision and good wear resistance.
CNC system
Standard type: Fanuc CNC system
other system such as Siemens, Mitsubishi, GSK, and FAGOR can choose
other system such as Siemens, Mitsubishi, GSK, and FAGOR can choose
