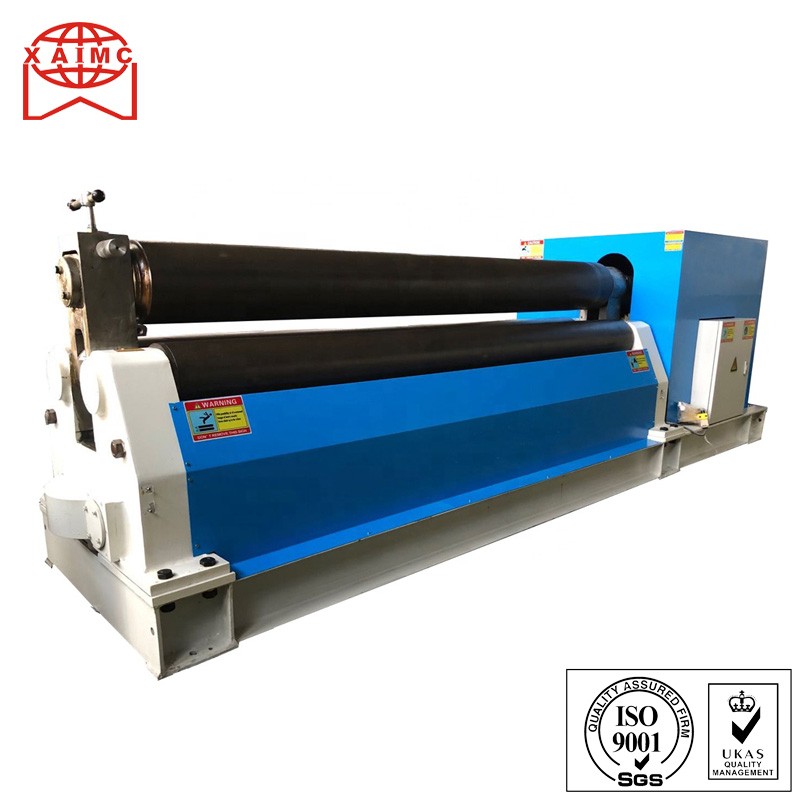

Rolls Pyramid Mechanical Plate Bending Machine W11-120*3000

This kind of plate bending machine belongs to 3 roller symmetrical mechanical structure.

The top roller moves up and down at the central part of the two bottom rolls.Screw nut and worm gear both play role of transmission.

Two bottom rolls act as main driving rolls.

Through the meshing,they are able to rotate between the output gear of the gearbox and the bottom roller,so as to supply the torque to bend plate.

This type of machine does well in compact structure,easy operation and convenient maintenance.

3m Rolls Pyramid Mechanical Plate Bending Machine

The suitable bending thickness of this rolling machine is from 4mm to 30mm.The range of useful length is from 1000mm to 4000mm.

3 roller manual sheet roll plate mechanical symmetric rolling machine

Feature:

This kind of plate bending machine belongs to 3 roller symmetrical mechanical structure.The top roller moves up and down at the central part of the two bottom rolls.Screw nut and worm gear both play role of transmission.Two bottom rolls act as main driving rolls.Through the meshing,they are able to rotate between the output gear of the gearbox and the bottom roller,so as to supply the torque to bend plate.This type of machine does well in compact structure,easy operation and convenient maintenance.

Components Brand:

Electric parts	SCHNEIDER,FRANCE
Rolls (steel 45 with quenching treatment)	YESHUN,CHINA
Electric motor	LICHAO,CHINA
Gearbox	Weinisi,CHINA
Worm wheel	YESHUN,CHINA
Gear	YESHUN,CHINA
Worm and worm wheel	YESHUN,CHINA

3 roller manual sheet roll plate mechanical symmetric rolling machine

Rolls Pyramid Mechanical Plate Bending Machine W11-120*3000
