CNC Fiber Laser Cutting Machine

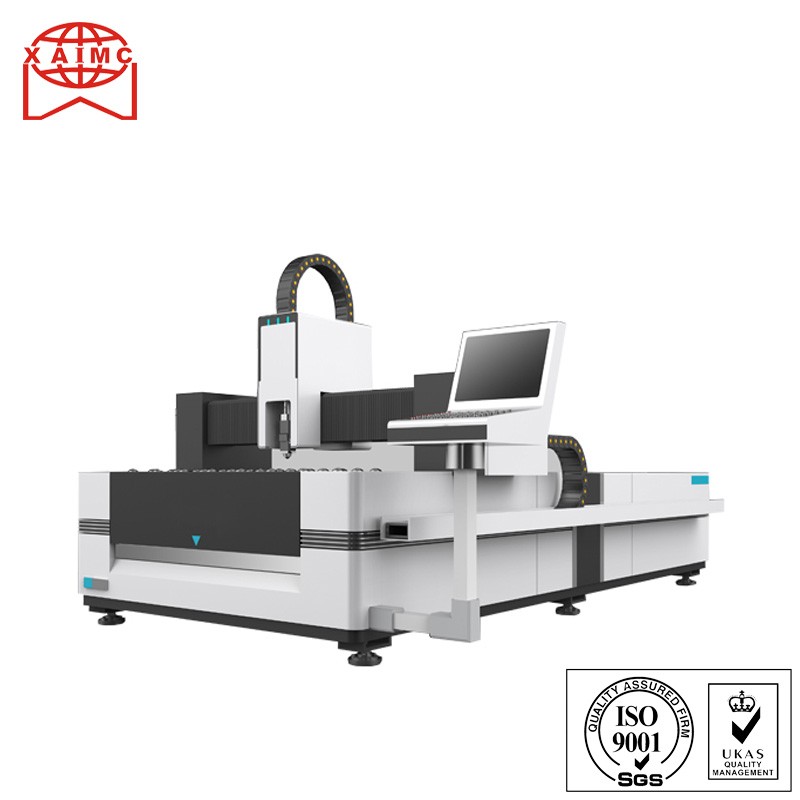

Metal Stainless Steel CNC Fiber Laser Cutting Machine

CAST-IRON BED, ANTI-VIBRATION, STABLE, NO DEFORMATION

*The main frame adopts the gantry structure welded by all steel plates to ensure the long-term stability without deformation

*The bed is annealed at high temperature in a large annealing furnace
*The bed is formed by imported gantry milling once
*Using gantry rack double guide rail, double servo drive structure
*Improve the stability and rigidity of the Y-axis beam
*Ensure the high precision and high dynamic performance of Y-axis beam movement
*Y-axis beam runs smoothly at high speed, greatly reducing gas consumption

Products Description

Cutting table size options: 3000x1500mm, 4000x1500mm, 6000x1500mm, 4000x2000mm, 6000x2000mm

Cutting ability of different power (for reference):

Machine details

CAST-IRON BED, ANTI-VIBRATION, STABLE, NO DEFORMATION

*The main frame adopts the gantry structure welded by all steel plates to ensure the long-term stability without deformation

CYPUT CONTROL SYSTEM

*Support AI, DXF, PLT, Gerber, LXD and other graphic data formats, and accept the Cyput Laser Cutting Control System international standard G code generated by MaterCam, Type3, Wentai and other software.

*To conduct automatic optimization when opening/importing DXF and other external files, including: to remove repetitive lines, merger connected lines, remove tiny graphics as well as automatically distinguish inside and outside models and conduct sorting. The above each function can be defined, as well as be carried out manually. To support common editing and typesetting functions, including: zooming in and zooming out, translation, mirror, rotation, alignment, copying, combination and so on.

*To use the easiest way to set the lead, slotted compensation, micro
connection, bridge-connection, lead inside or outside, lead seal without gap and so on.

GEARS, RACKS, GUIDES

*The guide rail and rack are calibrated by a precision collimator with an accuracy of ±0.02mm

*Using Taiwan YYC rack, grinding on all sides. And there is a positioning pin design to prevent the rack from shifting

*Using Taiwan HIWIN guide rail, and use oblique pressure block design to prevent displacement of guide rail

SWITZERLAND RAYTOOLS AUTO-FOCUS LASER CUTTING HEAD

*AUTOFOCUS: Through the built-in drive unit of the servo motor, the focusing lens is driven by the linear mechanism to automatically change the position in the focusing range. The user can set continuous zoom through the program to complete the rapid piercing of the thick plate and automatic cutting of different materials. *EFFICIENT: Reading the saved cutting parameters through the operating system can quickly change the focus position of the laser head, eliminating manual operation and improving efficiency by 30% *STABLE: Unique optical configuration, smooth and efficient airflow design and dual water-cooled design make the laser head work stably for a long time

OPTIONAL LASER SOURCE

*Different options of famous brand laser source(Reci/Raycus/IPG), We have professional sales and technician who can suggest you the most suitable laser source, depending your target price.

*Stable performance and high cost performance *The fiber launch is stable, with long service life of nearly 100,000 hours *It can run continuously 24 hours a day to meet the requirements of industrial continuous production

JAPAN PANASONIC SERVOMOTOR SERVO DRIVER

Using Japan Panasonic servo motor, servo drive and imported transmission system to ensure the accuracy and reliability of the fiber laser cutting machine.

JAPAN SHIMPO REDUCER

UsingJapanese SHIMPO reducer, 3 arc minutes accuracy, flange connection

Cutting sample

Metal Stainless Steel CNC Fiber Laser Cutting Machine

JAPAN PANASONIC SERVOMOTOR SERVO DRIVER

JAPAN SHIMPO REDUCER
