Main feature:
1.The longitudinal movement of the table and the lateral feed of the grinding head are all hydraulically driven, stepless speed regulation, and the lateral feed can also be manual;
2.The vertical feed motion of the machine tool uses a ball screw pair and the feed sensitivity is high. The grinding head adopts built-in motor, compact structure, good rigidity of the spindle and high precision;
3.The vertical feed of the grinding head is manual, equipped with a quick lifting mechanism, which can reduce labor intensity and improve work efficiency.
Product Description

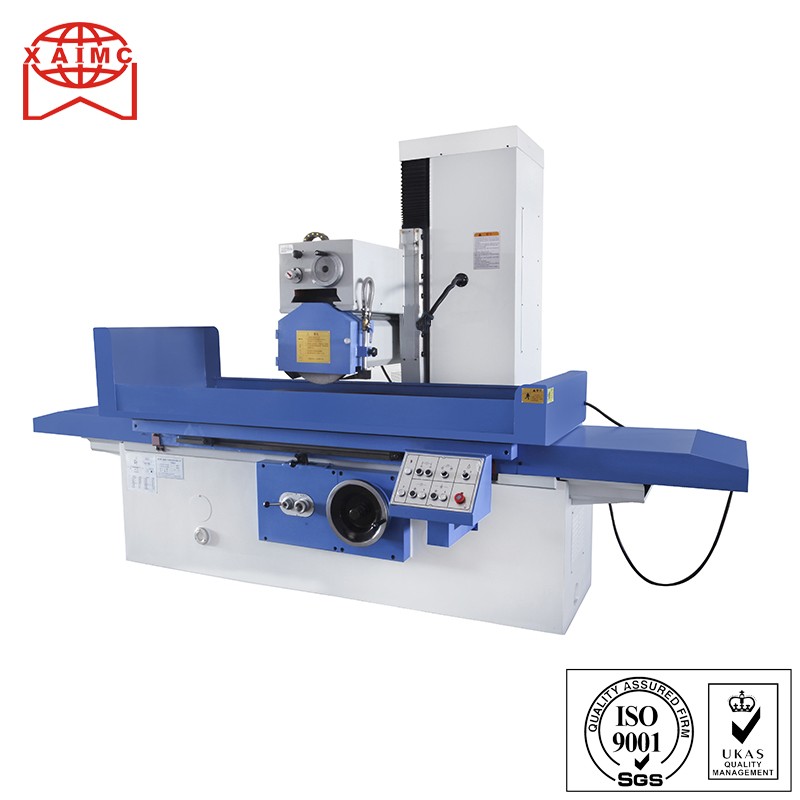

This series of machine tools grinds around the grinding wheel to grind various workpiece planes made of steel, castings, non-ferrous metals, glass, ceramics, etc. Suitable for all kinds of mechanical processing workshops and machine repair workshops.
| Main Specification | Units | M7120 | M7130 | M7140 | M7150C | |
| Table | Working table size(LxW) | mm | 1000*200 | 1000*320 | 1000*400 | 1250*500 |
| Max.grinding size(LxWxH) | mm | 1000*200*400 | 100*320* 400 | 1000*400*400 | 1000*500*500 | |
| Table longitudinal travel | mm | 1050 | 1050 | 1050 | 1300 | |
| Table longitudinal movement speed(stepless) | m/min | 3~27 | 3~27 | 3~27 | 3~27 | |
| Table T-slot(Geneva numerate x Slot width) | mm | 3*18 | 3*18 | 3*18 | 3*18 | |
| Table bearing capacity(including electromagnetic chuck weight) | kg | 468 | 499 | 624 | 850 | |
| Wheelhead | The distance between grinding wheel spindle center to work table | mm | 150~600 | 150~600 | 150~600 | 150~700 |
| Max.travel of wheelhead Cross(manual or power-operated) | mm | 350 | 350 | 440 | 540 | |
| Max.travel of wheelhead Vertical(manual or power-operated) | mm | 400 | 400 | 400 | 500 | |
| Cross-feed of wheelhead(Manual)(Stepless)Continuous | m/min | 0.5~3 | 0.5~3 | 0.5~3 | 0.5~3 | |
| Cross-feed of wheelhead(Manual)Internittent | mm/times | 3~30 | 3~30 | 3~30 | 3~30 | |
| Wheelhead feed for per grad. of handwheel Vertical | mm | 0.01 | 0.01 | 0.01 | 0.01 | |
| Wheelhead feed for per rev. of handwheel Vertical | mm | 1 | 1 | 1 | 1 | |
| Wheelhead rapid lifting speed | mm/min | ≥400 | ≥400 | ≥400 | ≥400 | |
| The ratating speed of the grinding wheel spindle | rpm | 1400 | 1440 | 1440 | 1440 | |
| Grinding wheel size(O.DxWxI.D) | mm | Φ400x40xΦ127 | Φ400x40xΦ127 | Φ400x40xΦ127 | Φ400x40xΦ127 | |
| Motor Power | Total motor power | kw | 10.995/14.495 | 10.995/14.495 | 10.995/14.495 | 15.495/18.995 |
| Wheelhead motor power | kw | 7.5/11 | 7.5/11 | 7.5/11 | 7.5/11 | |
| Working accuracy | Working surface to base level parallelism | mm | 0.015/1000 | 0.015/1000 | 0.015/1000 | 0.015/1000 |
| Surface roughness | μm | Ra0.63 | Ra0.63 | Ra0.63 | Ra0.63 | |
| G.W | kg | ≈3900 | ≈3900 | ≈4200 | ≈5800 | |
| Overall dimension(LxWxH) | mm | 3150*1673*2095 | 3150*1673*2095 | 3150*1673*2095 | 4000*2060*2175 | |
