Hydraulic press machine Y32

Four Column Hydraulic Presses/Double Action Deep Drawing Hydraulic Press Used in Processing Metal Products has the black-white control and PLC controls two kinds of electrical control system. The theadjustment, manual and the semiautomatic three operation mode may realize the constant pressure and decide theregulation two sreft ways.

When constant pressure formation, after suppression has gurantees when the rolling and automatic return trip movement. In the worktable is loaded with goes against the installment, besides goes against the product. Still permissible uses in as fluid pressure pad instead stretching workpiece’s formation craft, its working pressure and the traveling schedule, may according to the craft need, adjust in the stipulatin scope.

Categories: Metal Forming Machinery, Press Machine

Description

The hydraulic system of this machine includes motors, oil pumps, control valve manifolds, oil tanks
and other systems and various connecting pipelines. The pipelines of the hydraulic system are all connected by high-pressure flanges to avoid leakage of hydraulic oil. All oil pipes are pickled before welding, and then after welding slag, deburring and secondary pickling to ensure the cleanliness of the hydraulic pipeline.

Product Description

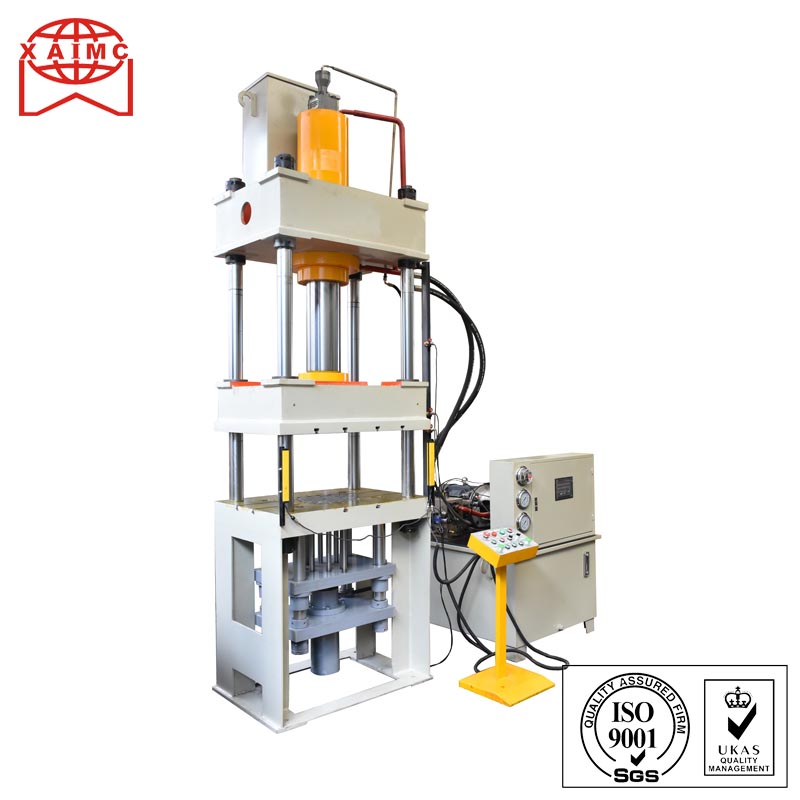

Four-column hydraulic press

Optional:

#Optoelectronic protective device

#Moving table

#Floating guide-way and rolling bracket for die exchange

#Blanking buffer device

#Quick die clamping mechanism

#Industrial touching screen monitor

#Stroke,pressure,speed digital control device

#Water cooler device Displacement sensor

#Blank holder slide,hydraulic cushion corners respectively regulating device(stretching asymmetric parts)

Size Information

Type	Unit	63T	100T	160T	200T	315T	630T	1000T	2000T
Nominal Pressure	KN	630	1000	160	2000	3150	6300	10000	20000
Ejecting Force	KN	100	200	250	400	630	1000	1000	2000
Max.working pressure	Mpa	25	26.2	26	25	25	26	26	27
Slide stroke	mm	500	500	500	700	800	900	900	1400
Max.opening height	mm	700	900	900	1120	1250	1500	1500	1600
Table Size(F.B.)	mm	500	580	800	900	1200	1500	1600	2000
Table Size(L.R.)	mm	500	710	800	900	1200	1500	1600	2800
Ejecting stroke	mm	160	200	200	250	300	400	400	450
Idle stroke	mm/s	76	100	100	100	＞100	＞100	＞100	＞100
Pressing	mm/s	10	8-15	8-15	8-15	8-15	10	12	10
Return	mm/s	60	60	60	70	70	65	80	＞75
Power of motor	KW	5.5	7.5	15	18.5	22	45	68	134
Total Weight	T	2.5	4	7	12	15	30	48	145

Scope Of Application

Drawing,bending,flanging,cold extruding,blanking processes for metal materials;straightening,press-in and forming processes for power and abrasive products,plastic and insulation materials.

Product Details

Electrical Diagrams

Siemens Motor

Oil Pump

Rexroth Valve

Hydraulic press machine Y32
