Horizontal Hydraulic Shaper Machine

BY60100C Horizontal Hydraulic Shaper Machine

The machine is suitable for various cutting plane, formed surface and is suitable for single piece and small batch production.

The main cutting movement and feeding movement are driven by hydraulic transmission, with stepless speed adjustment.

This machine has hydraulic overload insurance device, with the smooth transmission, small excess of stroke, reliable and flexible starting and stopping.

This machine has a high rigidity, strong cutting force and high reversing precision, low oil temperature, small thermal deformation.

This machine has a stable accuracy and can adapt to the strong cutting and continuous work.

The machine table can realize the fast moving in vertical and horizontal directions, and the tool post has the automatic tool-relief mechanism. The handles of the machine is centralized, so it is convenient for operation.

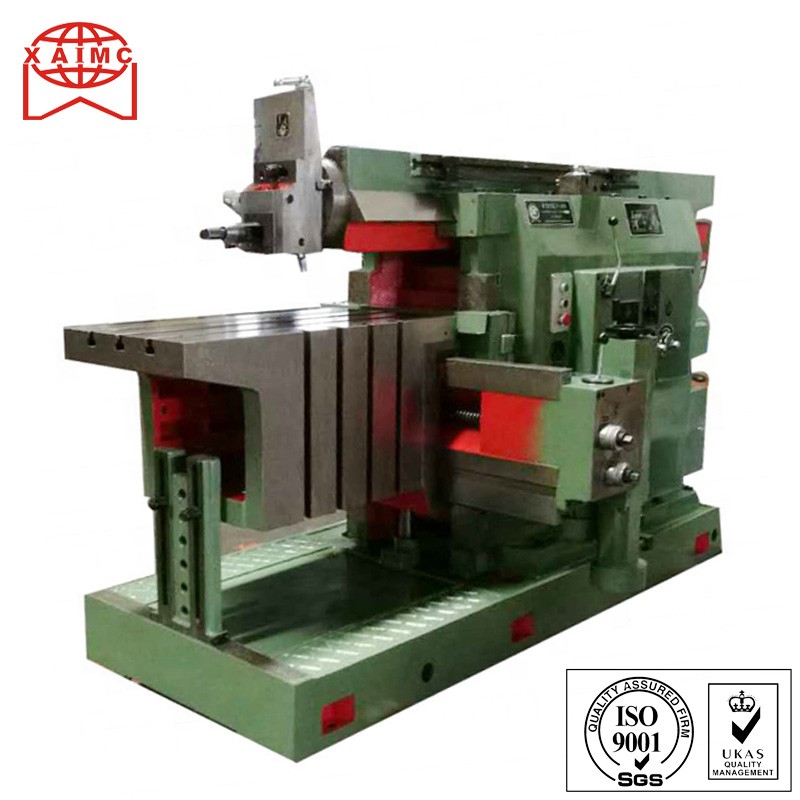

horizontal hydraulic shaper machine BY60100C

Horizontal Hydraulic Shaper Machine BY60100C

Specifications

The main cutting movement and feed movement of the machine are hydraulic transmission, can be stepless speed regulation, with hydraulic overload protection device, smooth transmission, over the amount of small, start and stop flexible and reliable, machine rigidity, cutting force, High precision, low oil temperature, small thermal deformation, precision and stability, can adapt to strong cutting and continuous work.

Machine table can achieve fast vertical and horizontal movement, the turret with automatic lift knife body, machine handle centralized, easy to operate. The machine is mainly composed of bed, ram, feed box, tool holder, table, beam, hydraulic control system, electrical system and so on. Bed, ram, feed box, turret, table, beams are HT200 castings. Through the aging, shot peening.

Model	unit	BY60100C
Max Shaping Length (mm)	mm	1000
Min Shaping Length (mm)	mm	150
Sleeper working speed (stepless)	m/min	3~44
Max distance from the bottom of the ram to the table	mm	400
Max cutting force	KN	≥28
Max working stroke of the tool holder	mm	160
Max Tool holder rotation angle	mm	+60°-60°
Arbor maximum size (width x height)	mm	30×45
The horizontal reciprocating stroke table of the ram	mm	0.25-5
The vertical reciprocating range of the reciprocating stroke	mm	0.05-0.25
Horizontal fast moving speed of the table	m/min	3
The table moves vertically and quickly	m/min	0.15
Worktable table size (length x width)	mm	1000×500
The center t-slot width of the worktop on the table	mm	22
The maximum load capacity of the table	Kg	320
The maximum travel of the table	mm	800
The maximum vertical travel of the table	mm	320
The maximum planing length when the tool holder is rotated	mm	800
Main motor power	KW	7.5
Main motor speed	r/min	970
The table quickly moves the motor power	KW	0.75
The table quickly moves the motor speed	r/min	1390
Machine weight	kg	4600
Machine size	mm	3615×2240×1990 mm

BY60100C Horizontal Hydraulic Shaper Machine
