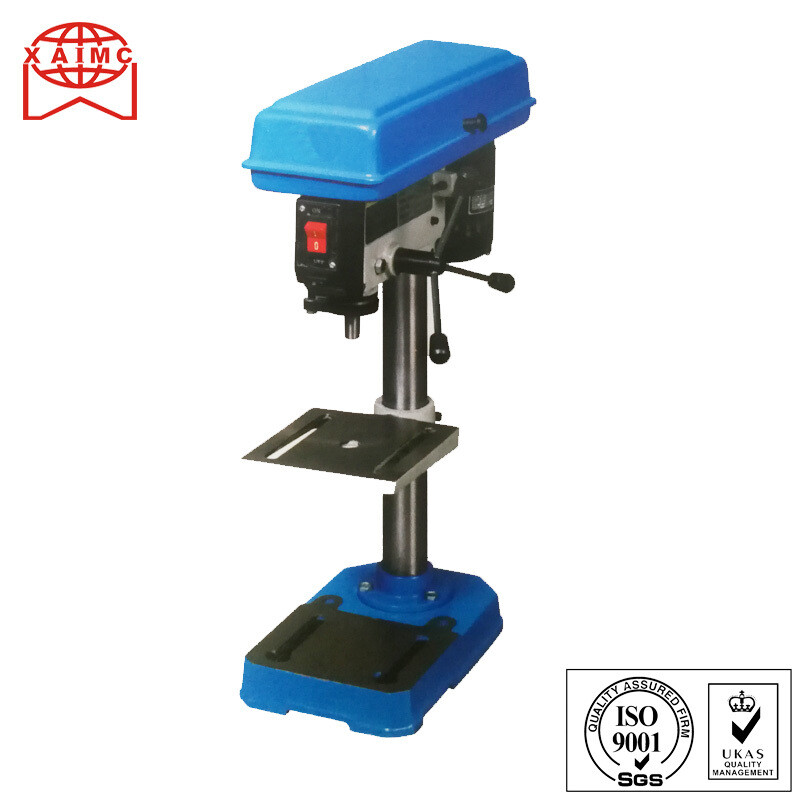

Drill machine DP30013B(1213B) 30016B(1216B)

Both spindle head,worktable ,column and base using high quality cast iron,strong and ever lasting.High precision with excellent feature,widely used at all kinds of fields such as instrument industry,machinery producing and repairing.

Category: Drilling

Description

Model	DP30013B/30016B (1213B/1216B)
Max.Drilling capacity (mm)	13/16
Diameter of column (mm)	60
Spindle travel (mm)	60
Distance spindle axis to column generating line (mm)	152.4
Max. Distance spindle nose totable (mm)	395/405
Max. Distance spindle nose tbase (mm)	520/530
Spindle taper	JT33/MT2
Spindle speeds range (r/min)	515-2580or180-2740
Spindle speeds series	5or12
Dimension f worktable surface (mm)	220X220
Table travel (mm)	400X250
Overall height (mm)	820
Motor ( w )	180(1/4HP)or250(1/3HP)
G.W/N.W ( kg )	34/31
Packing dimension （cm）	67X45X28
units per 1X20′ containercking dimension	330

Drill machine DP30013B(1213B) 30016B(1216B)
