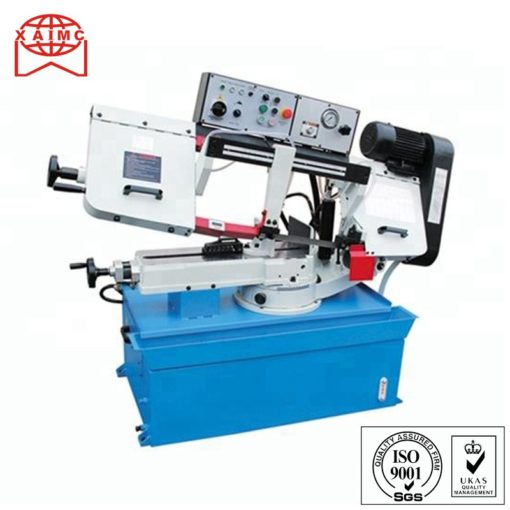

BS1018R 10 inch industrial hydraulic metal band saw

Features:

1. The maximum processing capability of BAND SAW BS-1018 is 10″(254mm)
2. The saw bow can be swiveled from 0° to 45°
3. Vertical force controlled through hydraulic cylinder.
4. Belt driven, with four cutting speed
5. Strong structure for big capacity cutting
6. Electric coolant system for extending the life of blade and improve the precision of work piece
7. High-capacity due to controlled by motor
8. Has the advantage of quickly clamping
9. The falling speed of saw bow is controlled by hydraulic cylinder
10. With a sizing device, machine will stop automatically after sawing materials
11. With power break protection device, machine will power off automatically when the rear protective cover is opened

Category: Sawing

Description

Machine Photos

1, Traditional and most universal model
2:,V-belt and gear driven for optional
3,The bow can be swiveled between 45 degree to 90 degree.

Product Paramenters

Model		BS-1018R
Capacity	Circular @90°	254 mm 10”
	Rectangular @90°	160×406 mm 6.3”x16”
	Circular @60°	–
	Rectangular @60°	–
	Circular @45°	170 mm 6.7”
	Rectangular @45°	160×190 mm 6.3”x7.5”
Blade speed @ 50Hz		29, 50, 73, 95 MPM
Blade speed @ 60Hz		35, 60, 88, 115 MPM
Blade size		27×0.9×3215 mm
Motor		1.5 kW 2HP (3PH)
Drive		Belt
Packing size (body)		189x84x134 cm
Packing size (stand)		Together with in body
N.W./G.W.		300/360 kg

BS1018R 10 inch industrial hydraulic metal band saw

Features:

1, Traditional and most universal model 2:,V-belt and gear driven for optional 3,The bow can be swiveled between 45 degree to 90 degree.
