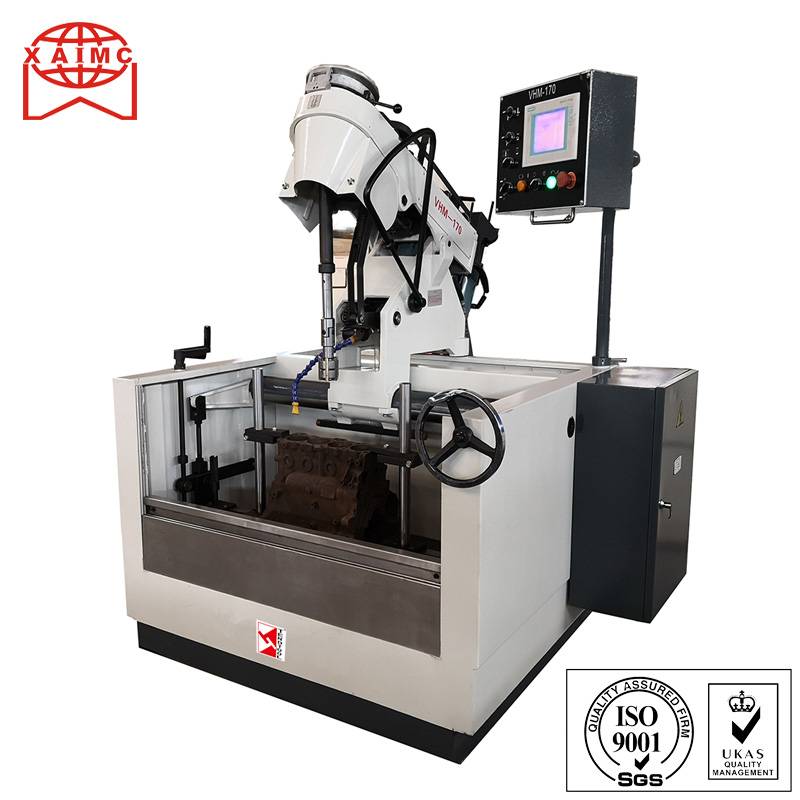

Automatic Cylinder Honing Machine
VHM170/analogue of sunnen sv10
| No. | Item | Unit | Parameters |
| 1 | Range of honing hole diameter | mm | 62~178 |
| 2 | Max. honing hole depth | mm | 360 |
| 3 | Workpiece size (L*W*H) | mm | 1168*558*673 |
| 4 | Workpiece weight | kg | 680 (incl. the |
| fixture) | |||
| 5 | Spindle motor | kw | 2.2 |
| 6 | Spindle speed | rpm | 90~350 stepless |
| adjustable | |||
| 7 | Stroke motor | kw | 0.75 |
| 8 | Stroke rate | Hz | 40~80 stepless |
| adjustable | |||
| 9 | Stroke length range | mm | 0~240 |
| 10 | Cooling pump motor | kw | 0.12 |
| 11 | Coolant capacity volume | dm3 | 210 |
| 12 | Floor area (L*W*H) | mm | 2318*1835*2197 |
| 13 | Machine tool net weight | kg | 860 |
| 14 | Machine tool weight (with coolant) | kg | 1100 |
| 15 | Ground load | kg/m2 | 800 |
| 16 | Gross weight of machine tool (with package, without coolant) | kg | 1100 |
