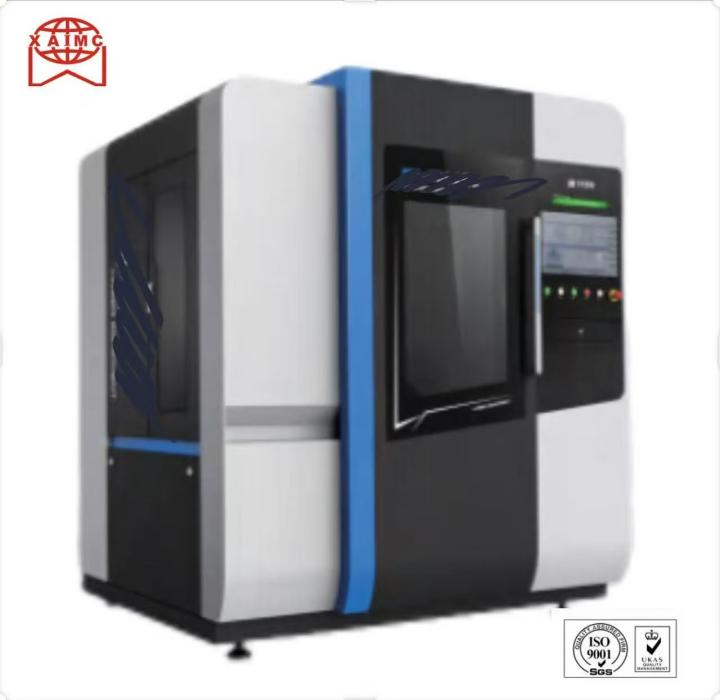

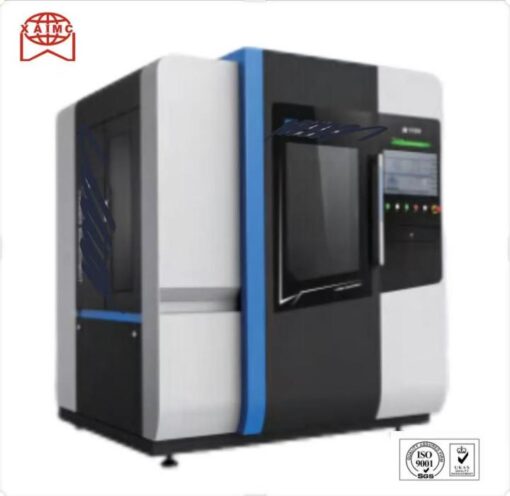

Model :Ultra precise Drill 50M
Features
- Compatible with various laser types, including nanosecond, picosecond, and femtosecond lasers ;
- Optional configurations with a 5D rotary cutting scanning module or a galvanometer scanning module ;
- Supports dual-camera, laser, and contact-based distance measurement modes for enhanced precision ;
- Integrated vision positioning system for accurate alignment and processing ;
- Equipped with beam shaping and real-time beam correction for optimized processing quality ;
- Includes proprietary CAM software, enabling large-format graph- ic stitching and precise machining ;
- Supports automated and digitalized hardware/software interfac- es for seamless integration with smart manufacturing systems.
Specifications
| X/Y/Z Axis Travel（mm） | 500/400/300 |
| Maximum Spindle Speed（rpm/min） | 6000（Lathe Model） |
| X/Y/Z Axis Positioning Accuracy（mm） | 0.002/0.002/0.004 |
| X/Y/Z Axis Repeatability Accuracy（mm） | 0.001/0.001/0.002 |
| X/Y/Z Axis Rapid Traverse Speed（m/min） | 30/ 30/ 10 |
| Drilling Accuracy（mm） | ±0.002 |
| Drilled Surface Roughness（/） | Ra0.4 |
| Etching Accuracy（mm） | ±0.002 |
| Etched Surface Roughness (μm） | Ra0.6 |
| Cutting Accuracy（mm） | ±0.003 |
| A-Axis Rotation Angle ( ° ) | ±120 |
| A-Axis Positioning / Repeatability Accuracy ( ”) | ≤20/≤8 |
| Rotation Concentricity（mm） | ±0.02 |
| C-Axis Rotation Angle ( ° ) | N×360 |
| C-Axis Positioning / Repeatability Accuracy ( ”) | ≤20/≤10 |
| Rotation Concentricity（mm） | ±0.02 |
| Weight（kg） | 4200 |
| Overall Dimensions（mm ）(W × D ×H) | 2000X1800X2300 |
