Processing Principle

By means of the transducer, electrical energy is converted into ultrasonicenergy. The ultrasonic energy is utilized to subject the tool to a vibrationfreguency of (i.e., 20,000 to 50,000 times per second), resulting in anextremely high impact acceleration (approximately 104A 10s times that ofgravitational acceleration). When combined with the main movement ofthe machine tool along the cutting direction, it causes high-frequencyvibration, significantly reducing cutting resistance and effortlesslyremoving residual machining material.

Product Cha Resonance Point racteristics

• Reducing cutting resistance during tool processing, significantly increasing tooldurability, lowering residual surface stress on the workpiece material, enhancingworkpiece surface integrity, and ensuring easier precision of parts.
• Automatically tracking ultrasonic frequencies, ensuring that the tool remains atthe optimal resonance point, and achieving tme cold cutting with the cooling
• liquid producing cavitation.
• Capable of providing high-speed machining functionality when used with low-speed machine tools.

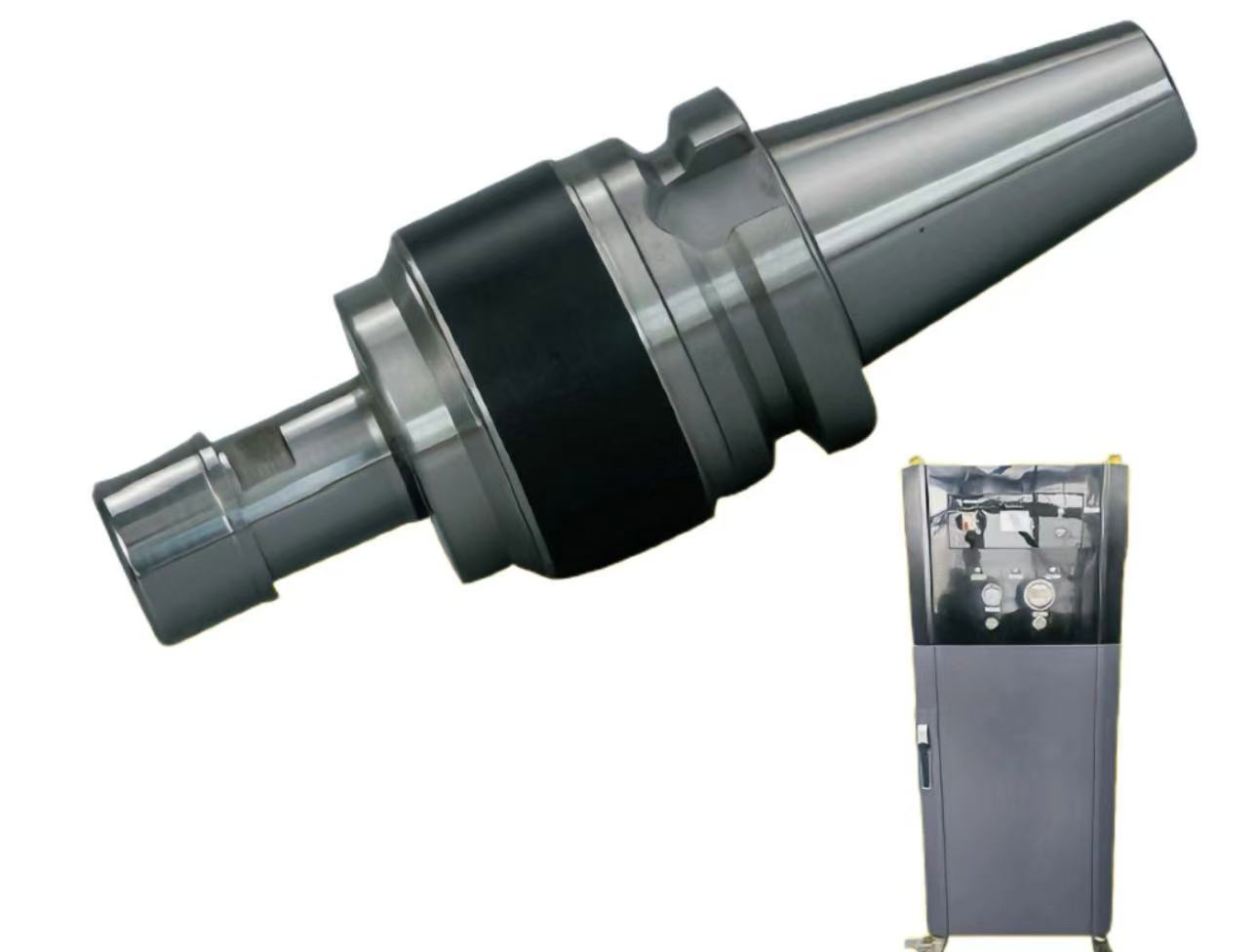

• Easy installation, wireless energy transmission, and automatic tool changingcapabilities.

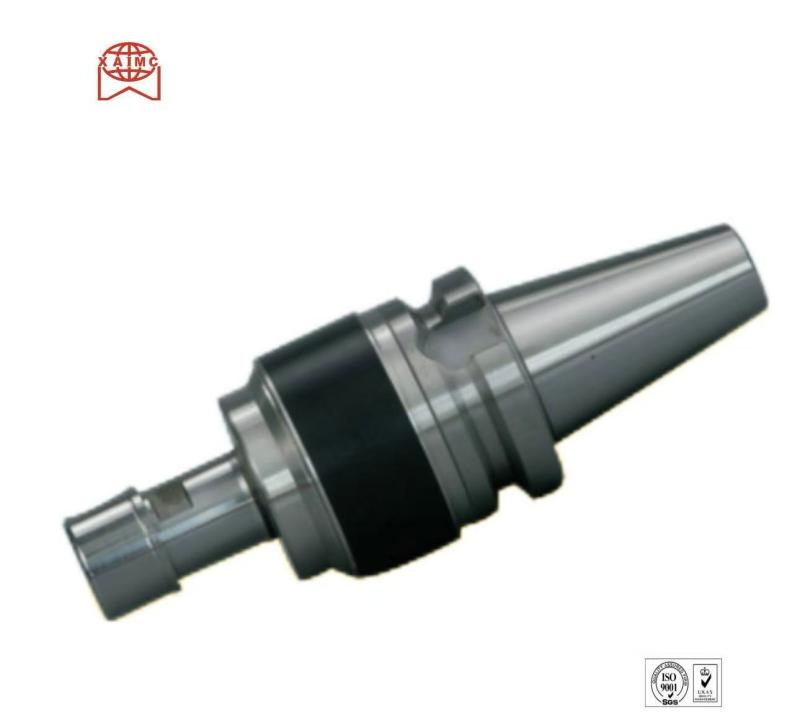

• The tool holder specifications, such as BT, HSK, ISO, etc., can be customized
• according to user needs.
• Center water outlet tool holders can be customized according to userrequirements.
