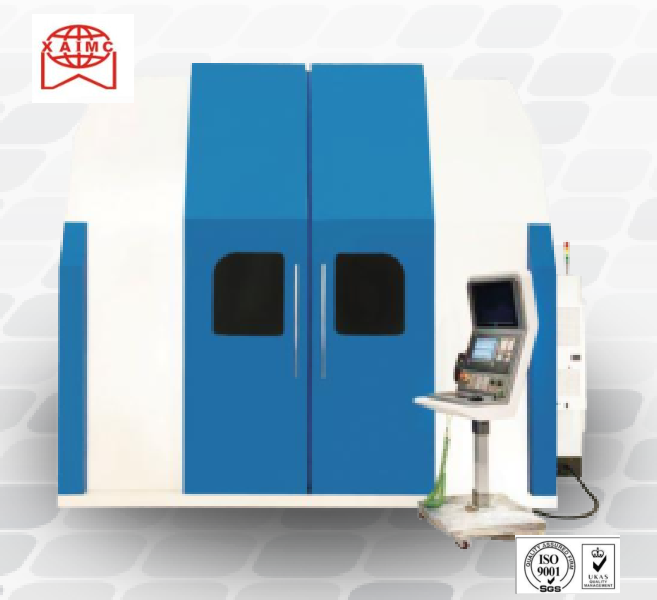

Model:Speedy Drill 100H/200L
Features
- Multiple machine configurations available to accommodate different workpiece sizes ;
- Six-axis and five-axis linkage motion control enables three-dimen- sional laser drilling ;
- Supports both laser percussion drilling and trepanning techniques for versatile applications ;
- Equipped with an optical dual-swing-axis laser processing head, ensuring excellent accessibility for complex geometries ;
- Laser focus correction capability for processing complex-shaped workpieces ;
- Adaptive positioning function for thin-walled rotational compo- nents, ensuring precise alignment ;
- Integrated coaxial vision system based on machine vision, enabling real-time process monitoring and assisted positioning ;
- Workpiece model feature extraction, allowing fast processing and automatic NC program generation ;
- Rotary workpiece flight drilling capability, significantly enhancing processing efficiency.
Specifications
| X/Y/Z Axis Travel (mm) | 1000×750×1000（Optional） |
| B/C Axis Travel ( ° ) | ±135/n×360 |
| C1 Axis Travel ( ° ) | n×360 |
| X/Y/Z Axis Positioning Accuracy ( ° ) | 0.02 |
| B/C Axis Positioning Accuracy ( ″ ) | 20 |
| C1 Axis Positioning Accuracy ( ″ ) | 15 |
| X/Y/Z Axis Repeatability Accuracy（mm） | 0.01 |
| B/C Axis Repeatability Accuracy ( ″ ) | 10 |
| C1 Axis Repeatability Accuracy ( ″ ) | 6 |
| Power（w） | 1500（Optional） |
| Weight（t） | 10 |
| Overall Dimensions(mm) (W × D × H） | 6340X5540X3900（Optional） |
| Processable Workpiece Size (mm) | φ1200×800 (Max: φ1400×800)
(Optional) |
